Type
Power Amplifier
-
Configuration
IC/MMIC/SMT
-
Application
Medical, Scientific, Industrial, Mobile, Radio, Plasma Generator, Magnetic Resonance Imaging (MRI), Base Station, Aviation
-
Display Application
Analog and Digital Broadcasting, Meteorological, Private Network Communication, Plasma Generation, Particle Accelerators, RF Ablation and Skin Treatment, Industrial Heating, Welding and Drying Systems
-
Standards Supported
ISM Band
-
Industry Application
Broadcast, Industrial, Aerospace & Defense, Radar
-
Frequency
1.8 to 700 MHz
-
Gain
21.01 to 27.71 dB
-
Output Power
48.92 to 53.01 dBm
-
Output Power
77.98 to 219.28 W
-
P1dB
55.44 to 55.88 dBm
-
P1dB
349.94 to 387.25 W
-
Saturated Power
56.02 dBm
-
Saturated Power
400 W
-
PAE
56.57 to 64.77%
-
Impedance
50 Ohms
-
Pulsed/CW
CW/Pulsed
-
Pulse Width
100 uSec
-
Sub-Category
Pulsed Amplifer
-
Supply Voltage
48 V
-
Quiscent Current
600 mA
-
Technology
LDMOS
-

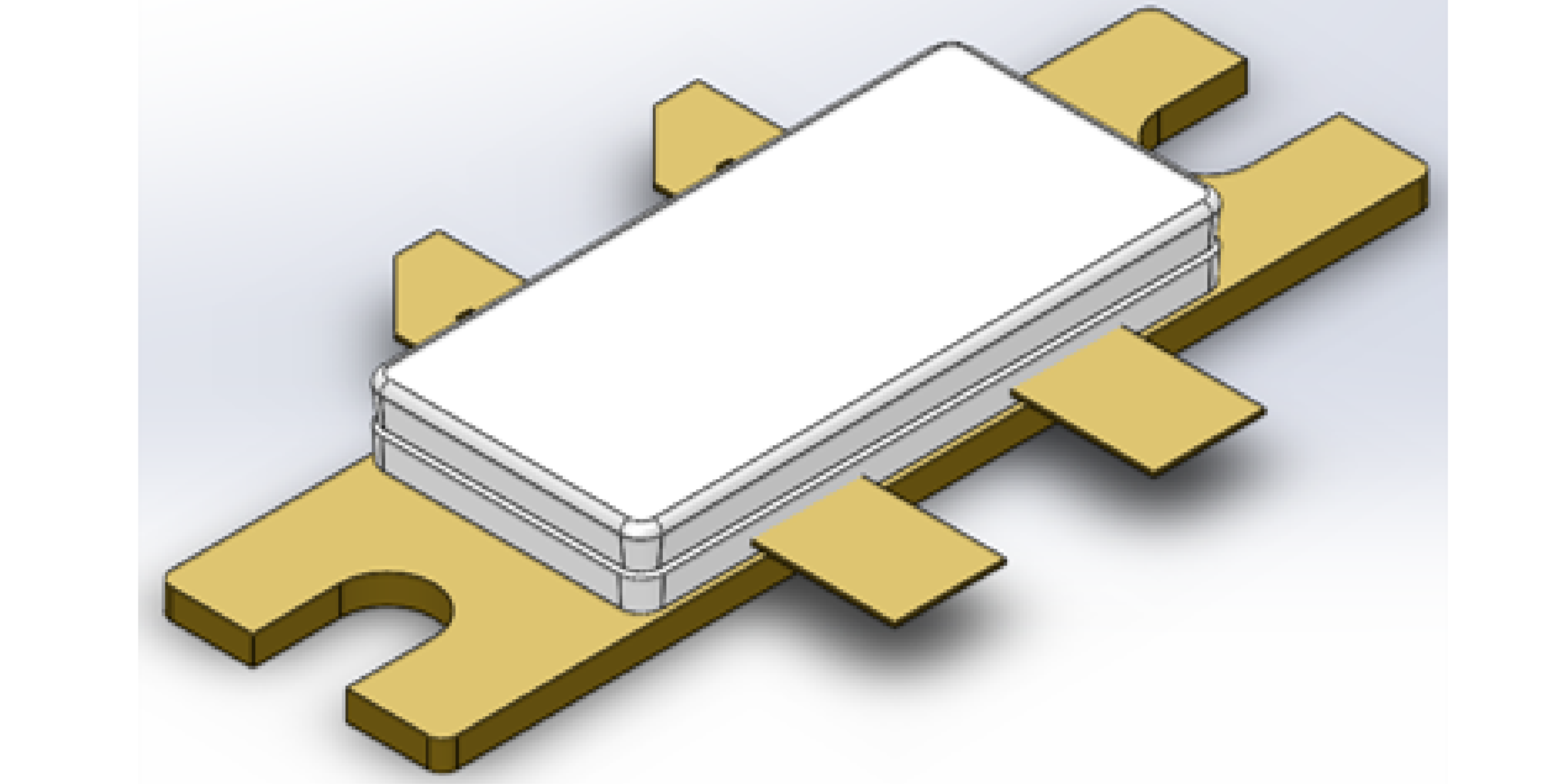

Package Type
Flanged
-
Package
4 Leads
-
Storage Temperature
-55 to 150 Degree C
-
RoHS
Yes
