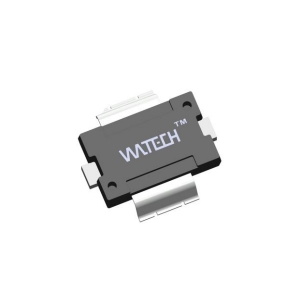

HTN8G27S020PG

HTN8G27S020PG

苏州华太电子技术股份有限公司

Product Details

Part Number

HTN8G27S020PG
Manufacturer

Watech Electronics
Description

20 W LDMOS Power Amplifier from 700 to 2700 MHz

分类：华太电子

描述

General Parameters

Type

Power Amplifier
Configuration

IC/MMIC/SMT
Standards Supported

WCDMA, CDMA, GSM, TDD LTE, FDD-LTE, WiMAX
Industry Application

Cellular
Frequency

700 to 2700 MHz
Gain

16.1 to 24.75 dB
Output Power

2.5 to 24.5 W
P1dB

42 to 43.9 dBm
P1dB

15.8 to 24.5 W
Saturated Power

43.01 dBm
Saturated Power

20 W
PAE

16.1 to 61.77%
Pulsed/CW

CW/Pulsed
Pulse Width

1 mS
Duty Cycle

10%
Supply Voltage

28 V (Drain)
Quiscent Current

180 mA
Technology

LDMOS
Package Type

Flanged, Surface Mount
Package

TO-270-A
Storage Temperature

-55 to 150 Degree C
RoHS

Yes
